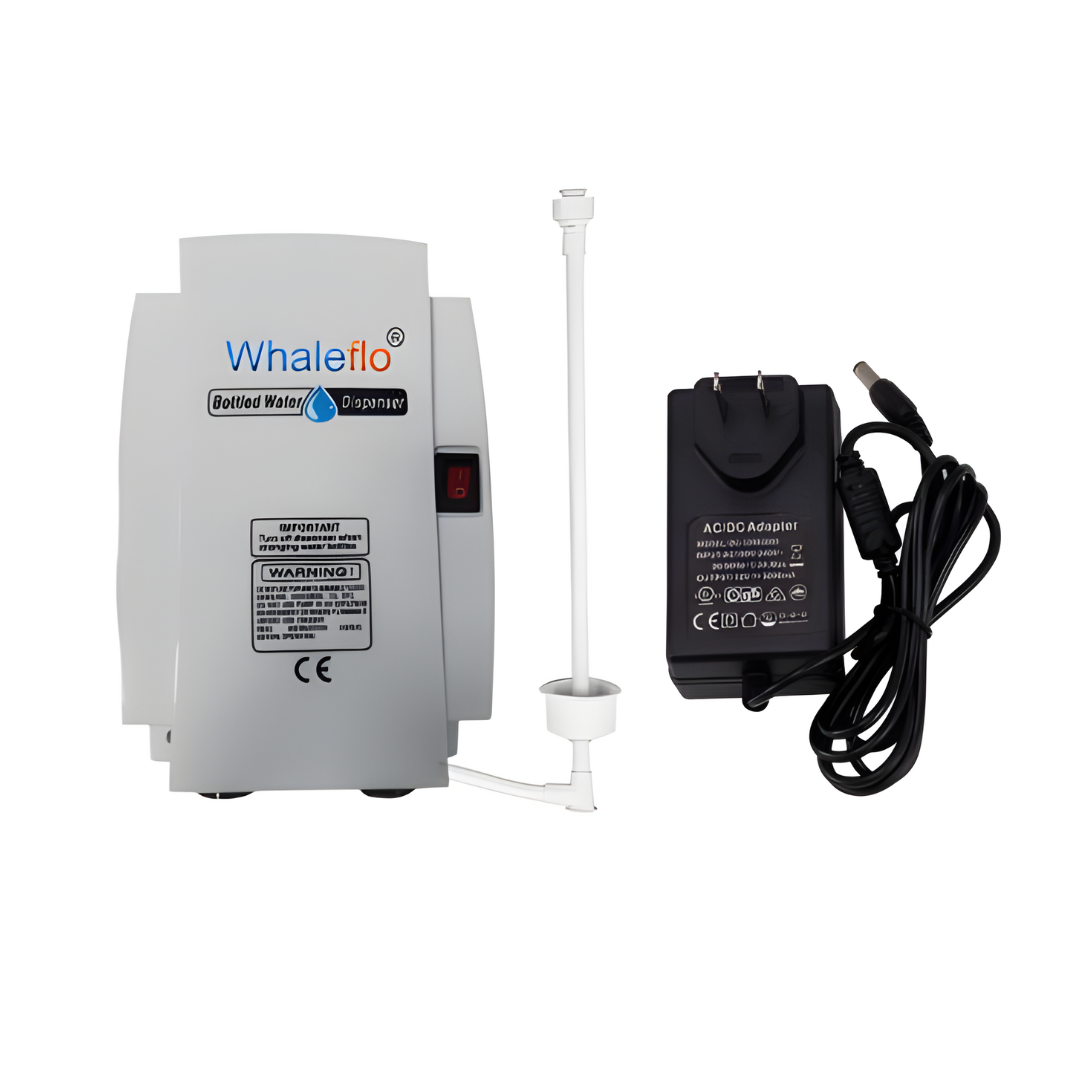

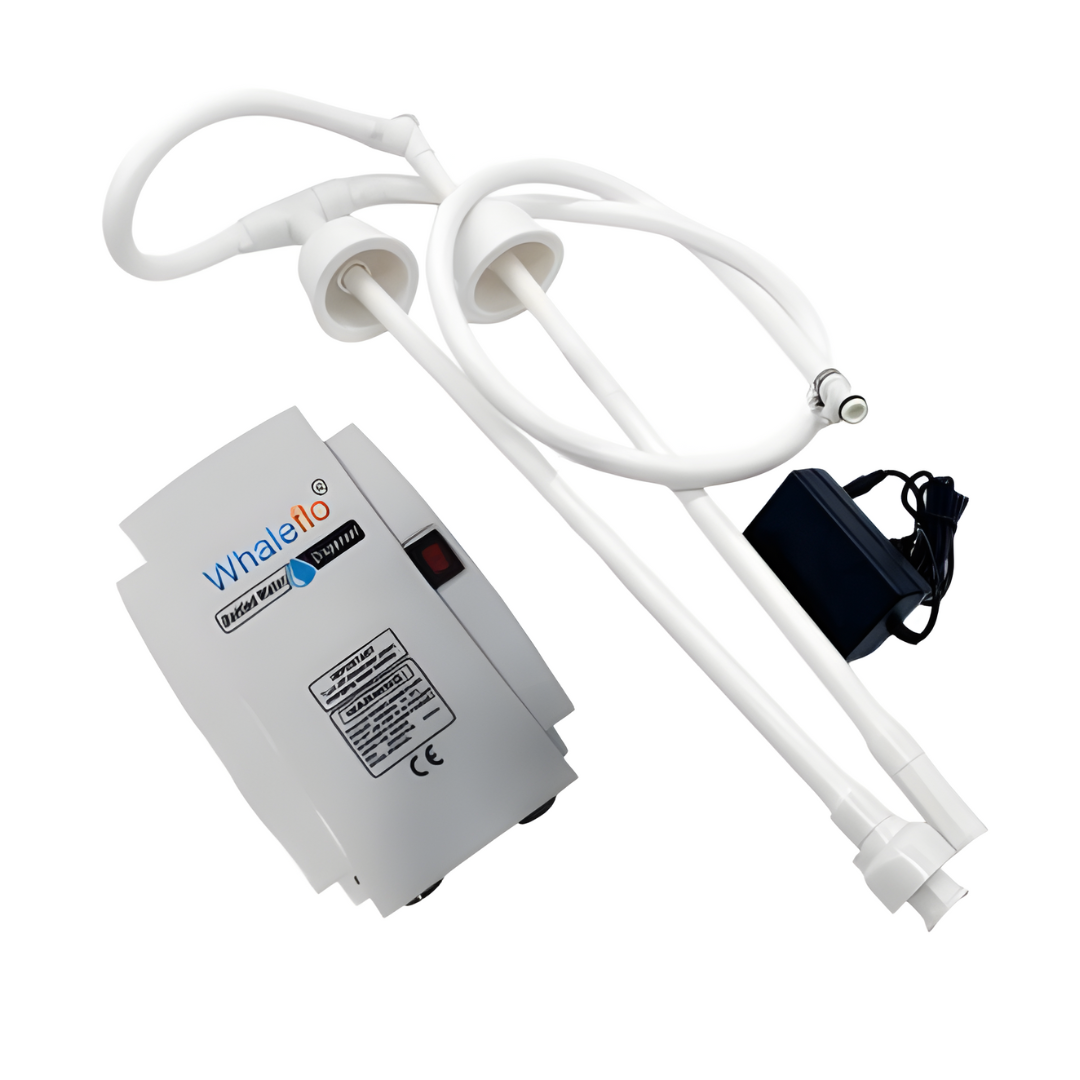

Whaleflo BW4003A Bottled Water Pump System – 110–240V Automatic Dispenser for Coffee Machines

Ensure a reliable, pressurised water supply anywhere with the Whaleflo BW4003A Bottle Pump Dispensing System — a powerful, automatic bottled water solution designed for both home and commercial applications. Engineered as a dependable alternative to Flojet-style systems, it delivers purified water from standard 5-gallon bottles directly to coffee machines, refrigerators, ice makers, faucets, and sinks.

Built by Whaleflo, the BW4003A combines smart automation, low power consumption, and built-in safety features for hassle-free daily use.

Key Features

• Automatic On / Off Operation
  Float switch activates the pump when the bottle is inserted and shuts it off automatically when empty.
• Wide Voltage Compatibility (110V–240V AC)
  Suitable for global use in homes, offices, cafés, and light commercial environments.
• Low Power Consumption
  Energy-efficient design for continuous standby use.
• Easy Bottle Change System
  Integrated back-flow prevention valve prevents spills and water backflow during bottle replacement.
• Dual Inlet Bottled Water System
  Designed to work seamlessly with standard 5-gallon purified water bottles.
• Thermal Cut-Off Protection
  Automatic thermal safety shut-off protects the pump from overheating.

How the System Works

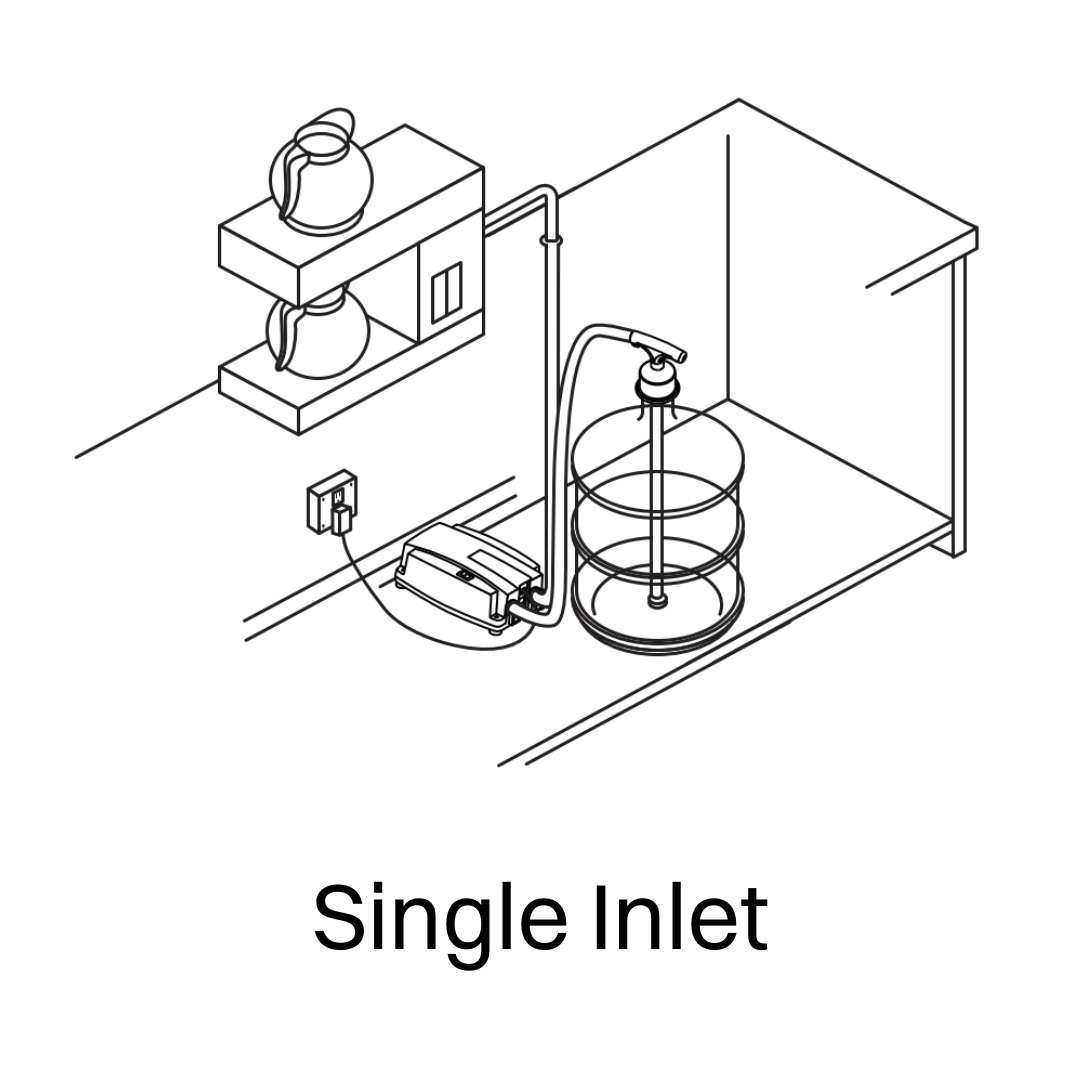

The Whaleflo BW4003A is designed to pump purified water from a standard 5-gallon bottled water container and deliver it under pressure to:

• Coffee & tea brewers
• Refrigerators & ice makers
• Chilled water taps
• Drinking water faucets

When the suction wand is inserted into the bottle, the built-in float switch automatically turns the pump on. As water is drawn, the pump intelligently adjusts flow and pressure to meet demand. Once the bottle is empty, the float switch shuts the system off automatically.

A built-in back-flow prevention valve ensures no water spills or drains back into the bottle during changes, keeping the system clean and safe.

Designed for Convenience & Reliability

• No plumbing required
• Consistent pressure delivery
• Quiet, automatic operation
• Ideal for locations without a direct water line

Perfect for espresso machines that require stable pressure, such as prosumer and commercial coffee equipment.

Common Troubleshooting Guidance

System Will Not Dispense Water

• Check power supply and on/off switch
• Confirm suction wand is fully inserted
• Check for empty bottle or air in system

System Gets Warm and Turns Off

• Inspect float switch position
• Check for leaks in discharge tubing

System Will Not Shut Off

• Check for leaks at tubing, fittings, faucet, or appliance inlet
• Inspect pressure switch and float switch

System Cycles On and Off

• Check for restrictions at appliance inlet
• Inspect inline or internal refrigerator filters

Why Choose the Whaleflo BW4003A?

• Reliable bottled water solution without plumbing
• Automatic, intelligent pump control
• Safe, spill-free bottle changes
• Ideal for coffee machines, ice makers, and appliances
• Trusted alternative to Flojet bottled water systems

The Whaleflo BW4003A Bottled Water Dispensing System delivers clean, pressurised water exactly where you need it — simple, efficient, and built to perform.
